Capacity
40 KVA
Phase: 3φ4W+PE
System voltage (VDC): 384
Crest factor: >3:1
Load Capacity
Overload: 125% load keep 10min,150% load keep 30s
Input Voltage
380±25%
Output Voltage
380/400/415±1％
Noise Level
<60(within 1 meter)
Alarm
Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection
Display Type
General LCD
Voltage Range
380±25%
Frequency
45～66 Automatically select synchronization range according to grid frequency
Voltage Range
380/400/415±1％, Isolation transformer output
Power Factor
0.8/0.9
Type of Wave
Sine Wave,THD<3%
Backup Time
depends on customer configuration
Warranty
1 Year Warranty

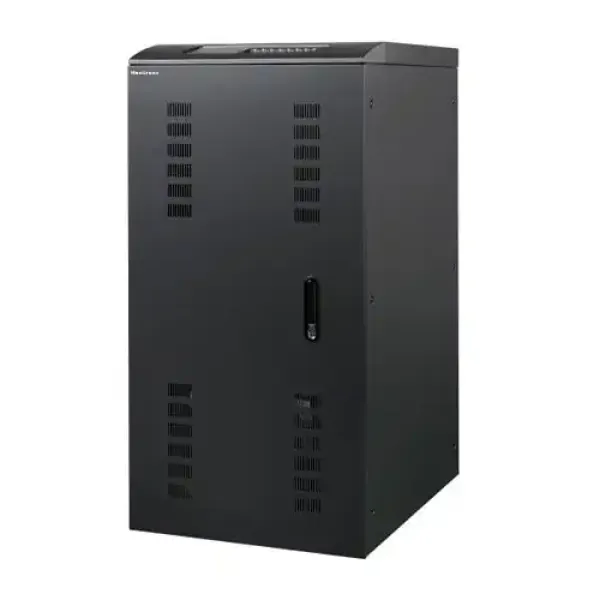

MaxGreen W4033-LF 40KVA Low-Frequency Transformer Base Online UPS designed with 384 of system voltage. It can keep 125% load for 10 min and 150% load for 30s. The input voltage is 380±25% and the output voltage is 380/400/415±1％. It has also a General LCD Display.
